Common Mode LC2 Series
페이지 정보
본문

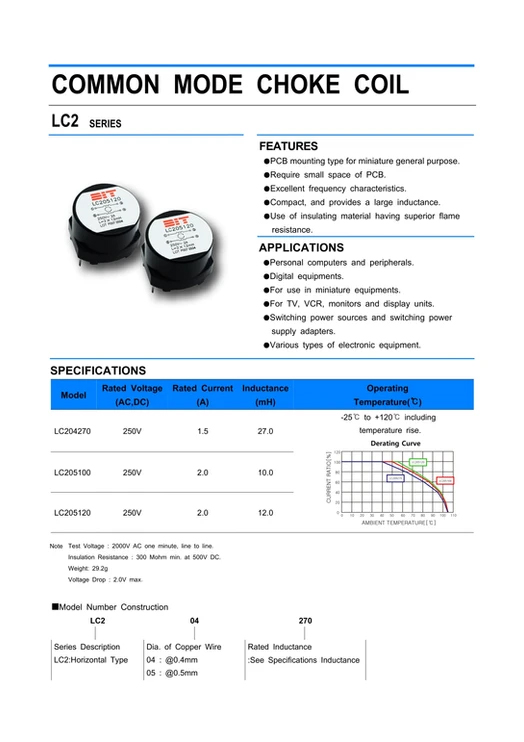

Features - PCB mounting type for miniature general purpose - Require small space of PCB - Excellent frequency characteristics - Compact, and provide a large inductance - Use of insulating material having superior flame resistance Description Applications - Personal computers and peripherals - Digital equipments - For use in miniature equipments - For TV, VCR, monitors and display units - Switching power sources and switching power supply adapters - Various types of electronic equipment |
LC2 Series PDF File Download |
Series | Rated Current | Inductance | Temperature | Cover | Mounting Method |
LC2 Series | 1.5A, 2.0A | ~27mH | -25℃~+105℃ | Plastic | PCB |
※ 모든 첨부자료와 정보들은 (주)동일기연에서 출처된 내용입니다.
