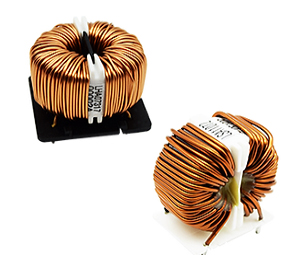

Common Mode LSA/LHA Series
페이지 정보
본문
Features - Excellent frequency characteristics - Use of insulating material having superior flame resistance - Available either vertical mounting type, or horizontal mounting type Description Applications - Personal computers and peripherals - Digital equipments - Switching power sources, and switching power supply - Various types of electronic equipment |
LSA/LHA Series PDF File Download |
Series | Rated Current | Inductance | Temperature | Cover | Mounting Method |
LSA/LHA Series | 1A~20A | ~30mH | -25℃~+105℃ | Plastic | PCB |
