TB6-4 Series
페이지 정보
본문
|

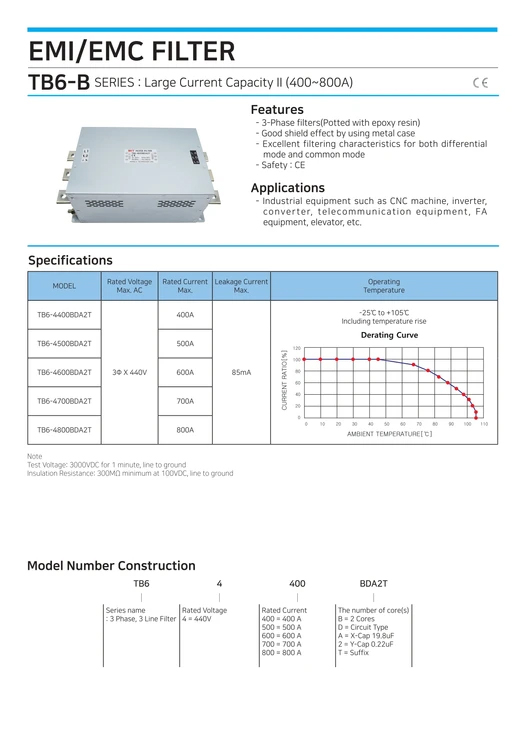

Features - 3-Phase filters(Potted with epoxy resin) - Good shield effect by using metal case - Excellent filtering characteristics for both differential mode and common mode - Safety : CE Description Applications - Industrial equipment such as CNC machine, inverter, converter, telecommunication equipment, FA equipment, elevator, etc. |
| TB6-4 Series PDF File Download |  |
| Series | Rated Voltage | Rated Current | Approvals | Cover | Mounting Method | Output Method |
| CA5 Series | ~250V AC 50/60Hz | 1.5A,3A,5A | KC,UL,CSA,TUA | Metal | Screw | PVC insulated Wire UL 1015 AWG #20 |
 |
 |
※ 모든 첨부자료와 정보들은 (주)동일기연에서 출처된 내용입니다.
