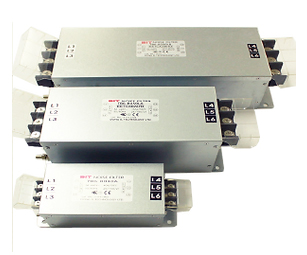

TB6-B Series

Features

- 3-Phase filters(Potted with epoxy resin)

- Good shield effect by using metal case

- Excellent filtering characteristics for both differential mode and common mode

- Safety : ENEC,CE,SEMKO(Except for : TB6-B***LASH)

Description

Applications

- Industrial equipment such as CNC machine, inverter, converter,

telecommunication equipment, FA equipment, elevator, etc.

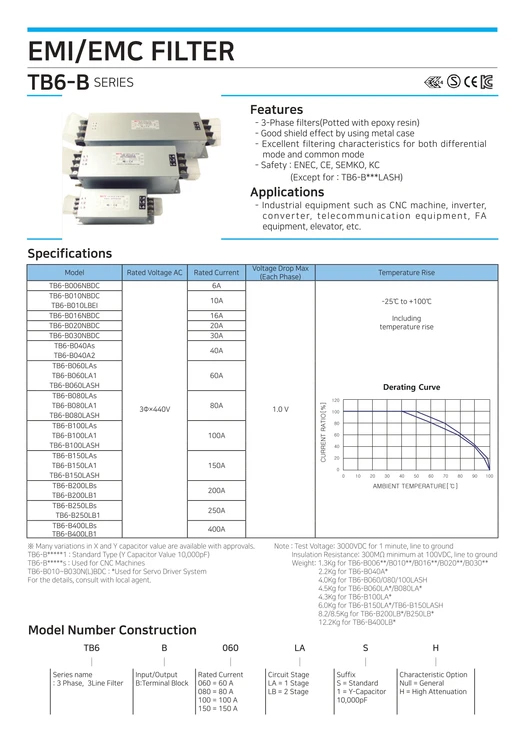

TB6-B Series PDF File Download

Series

Rated Voltage

Rated Current

Approvals

Cover

Mounting Method

Output Method

TB6-B Series

~440V AC 50/60Hz

(3 Line)

6A,10A,16A,20A,30A,

40A,80A,100A,150A,

200A,250A,400A

SEMKO+ENEC,CE

Metal

Screw

Teminal Block,

Bus Bar
