TB6-2,4 Series

Features

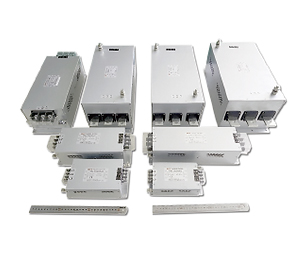

- 3-Phase filters(Potted with epoxy resin)

- Remarkable attenuation for high voltage impulse

- Good shield effect by using metal case

- Excellent filtering characteristics for both differential mode and common mode

- Safety : SEMKO+ENEC(Except for 800A), CE

Description

Applications

- Industrial equipment such as CNC machine, inverter, converter,

telecommunication equipment, FA equipment, elevator, etc.

TB6-2.4 Series PDF File Download

Series

Rated Voltage

Rated Current

Approvals

Cover

Mounting Method

Output Method

TB6-2,4 Series

~440V AC 50/60Hz

(3 Line)

10A,16A,20A,30A,40A,

60A,80A,100A,150A,200A,

250A,300A,400A,500A,

600A,700A,800A

SEMKO+ENEC,CE

Metal

Screw

Teminal Block,

Bus Bar
