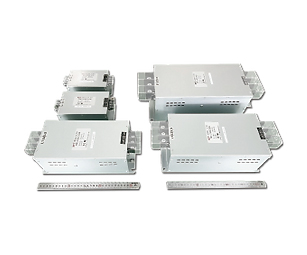

TB6-2,5 Series
페이지 정보
본문
|
Features - 3-Phase filters(Potted with epoxy resin) - Two types of remarkable attenuation for high voltage impulse : High attenuation type, General attenuation type - Good shield effect by using metal case - Excellent filtering characteristics for both differential mode and common mode - Safety : CE, UL Description Applications - Industrial equipment such as CNC machine, inverter, converter, telecommunication equipment, FA equipment, elevator, etc. |

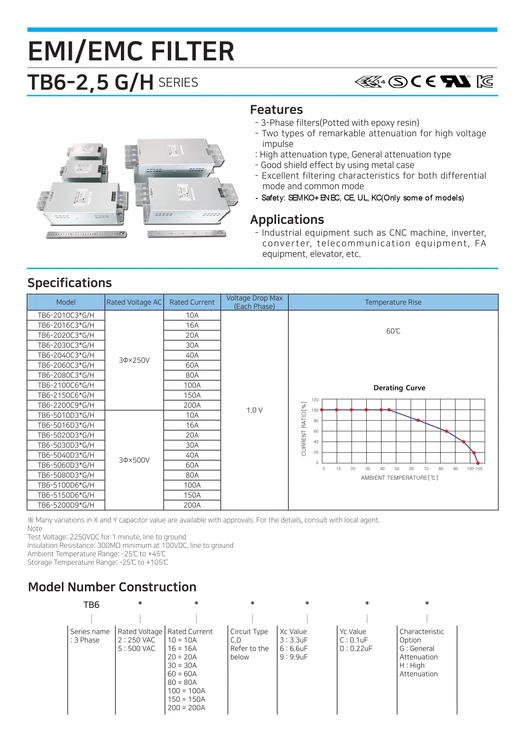

| TB6-2.5 Series PDF File Download |  |
| Series | Rated Voltage | Rated Current | Approvals | Cover | Mounting Method | Output Method |
| TB6-2,5 Series | ~500V AC 50/60Hz | 10A,16A,20A,30A,40A,60A, 80A,100A,150A,200A | CE,UL | Metal | Screw | Teminal Block |
 |
 |
※ 모든 첨부자료와 정보들은 (주)동일기연에서 출처된 내용입니다.
