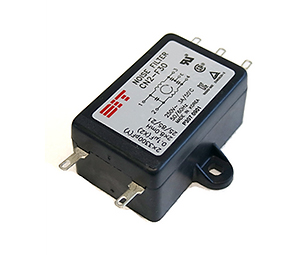

CN Series
페이지 정보
본문
|

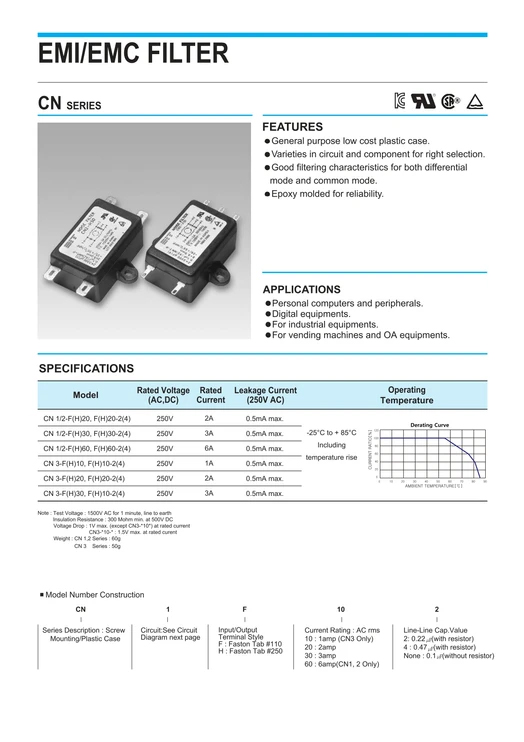

Features - General purpose low cost plastic case - Varieties in circuit and component for right selection - Good filtering characteristics for both differential mode and common mode - Epoxy molded for reliability Description Applications - Personal computers and peripherals - Digital equipments - For industrial equipments - For vending machines and OA equipments |

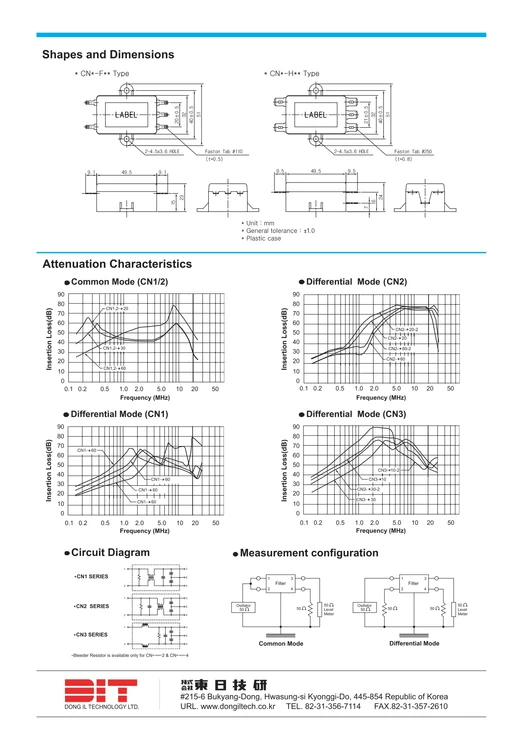

| CN Series PDF File Download |  |
| Series | Rated Voltage | Rated Current | Approvals | Cover | Mounting Method | Output Method |
| CN Series | ~250V AC 50/60Hz | 1A,2A,3A,6A | KC,UL,CSA,TUV | Plastic | Screw | Faston Tab #110,#250 |
 |
 |
※ 모든 첨부자료와 정보들은 (주)동일기연에서 출처된 내용입니다.
