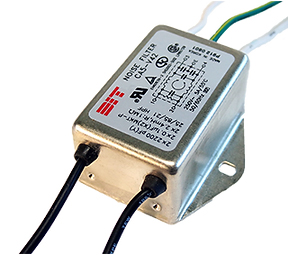

CA5 Series
페이지 정보
본문
|
Features - Remarkable attenuation for high voltage impulse - Good shield effect by using metal case - Excellent filtering characteristics for both differential mode and common mode - Bidirectional structure effective for both noise from outside and internally generated. Description Applications - Digital equipments - Personal computers and peripherals - Measuring instruments, medical instruments - For use in miniature equipment - Suitable for FA equipments |

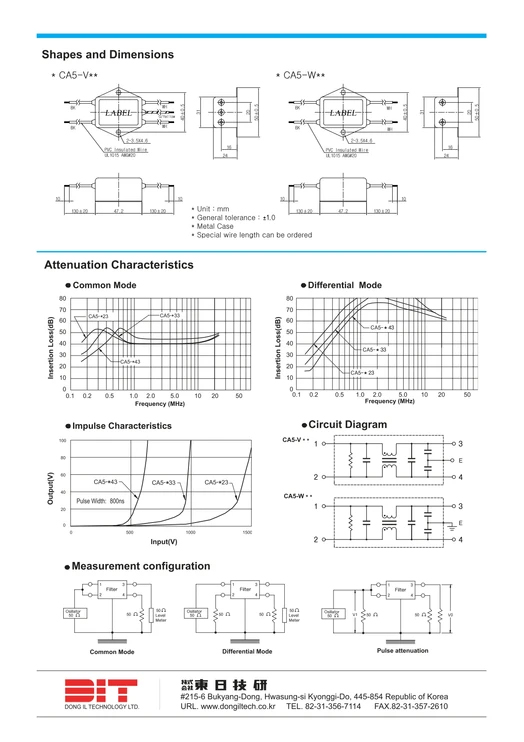

| CA5 Series PDF File Download |  |
| Series | Rated Voltage | Rated Current | Approvals | Cover | Mounting Method | Output Method |
| CA5 Series | ~250V AC 50/60Hz | 1.5A,3A,5A | KC,UL,CSA,TUA | Metal | Screw | PVC insulated Wire UL 1015 AWG #20 |
 |
 |
※ 모든 첨부자료와 정보들은 (주)동일기연에서 출처된 내용입니다.
