HP4 Series
페이지 정보
본문
|
Features - 2-Phase, 2-Line Type - SMD Component for PCB/PCBA - Excellent filtering characteristics for both differential mode and common mode - Silicone molded for reliability Description Applications - Telecommunication equipments like computers or peripherals, Measuring instruments, OA equipments, FA equipments etc |

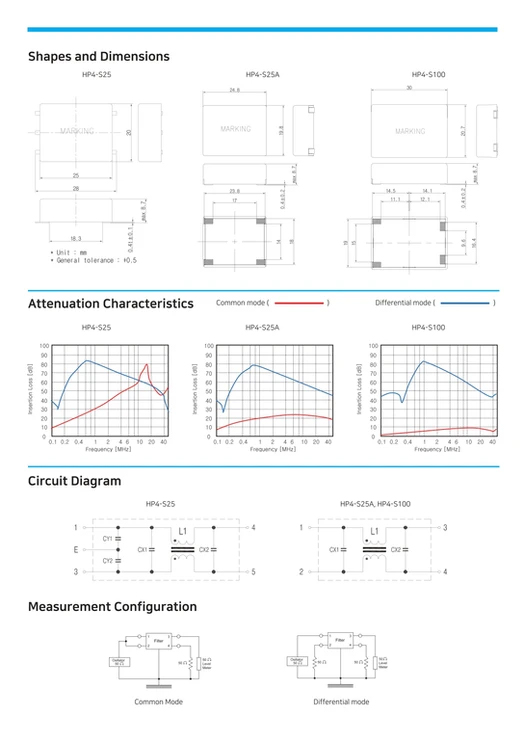

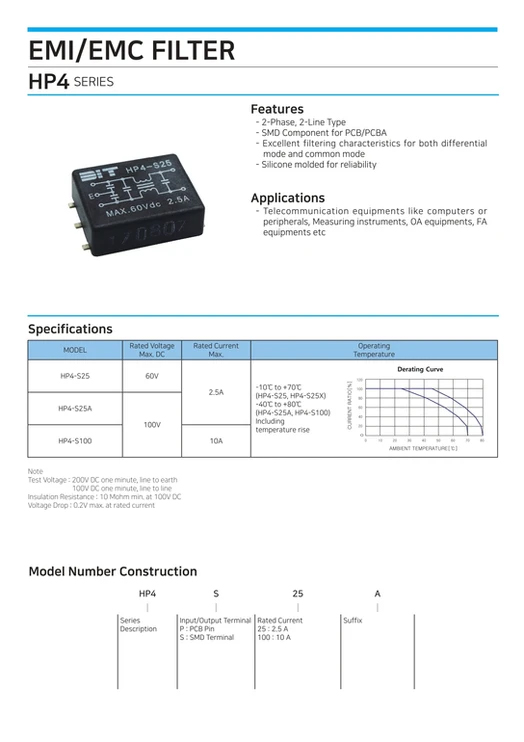

| HP4 Series PDF File Download |  |
| Series | Rated Voltage | Rated Current | Approvals | Cover | Mounting Method | Output Method |
| HP4 Series | ~100V DC | 2A,3A,5A,6A,10A | - | Plastic | SMD Type | SMD Terminal |
 |
|
※ 모든 첨부자료와 정보들은 (주)동일기연에서 출처된 내용입니다.
