TB1 Series
페이지 정보
본문
|
Features - 2-Phase, 2-Line Type- Easy connection and installation- Easy connection and installation - Excellent filtering characteristics for both differential mode and common mode - Safety approval : CE, SEMKO, cULus, CQC, KC(Except for : TB1-40A***, TB1-******H) Description Applications - Use in medical/industrial equipment, gaming, other ground current-sensitive applications - For equipment requiring very high noise attenuation - Measuring and testing instruments |

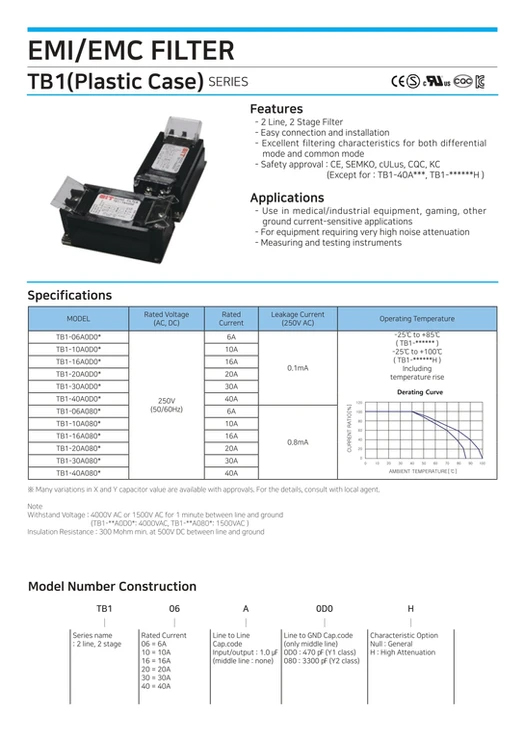

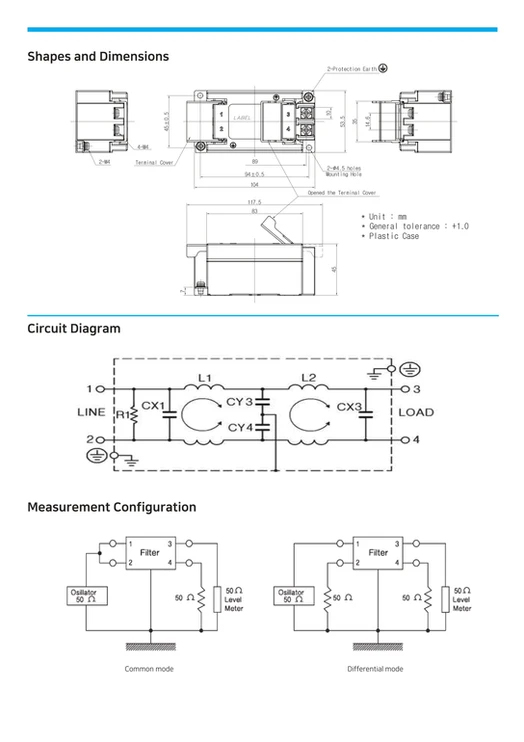

| TB1 Series PDF File Download |  |
| Series | Rated Voltage | Rated Current | Approvals | Cover | Mounting Method | Output Method |
| TB1 Series | ~250V AC 50/60Hz | 6A,10A,16A,20A,30A,40A | CE,SEMKO,KC, cULus,CQC | Plastic | Screw | Terminal Block |
 |
 |
※ 모든 첨부자료와 정보들은 (주)동일기연에서 출처된 내용입니다.
