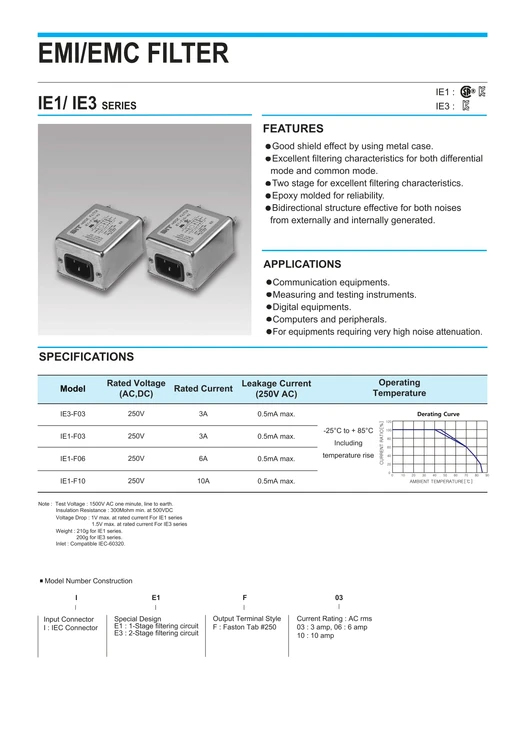

IE1 Series
페이지 정보
본문
Features - Good shield effect by using metal case - Excellent filtering characteristics for both differential mode and common mode - Two stage for excellent filtering characteristics - Epoxy molded for reliability - Bidirectional structure effective for both noises from externally and internally generated Description Applications - Digital equipments - Measuring and testing instruments - Communication equipment - Computers and peripherals - For equipments requiring very high noise attenuation |

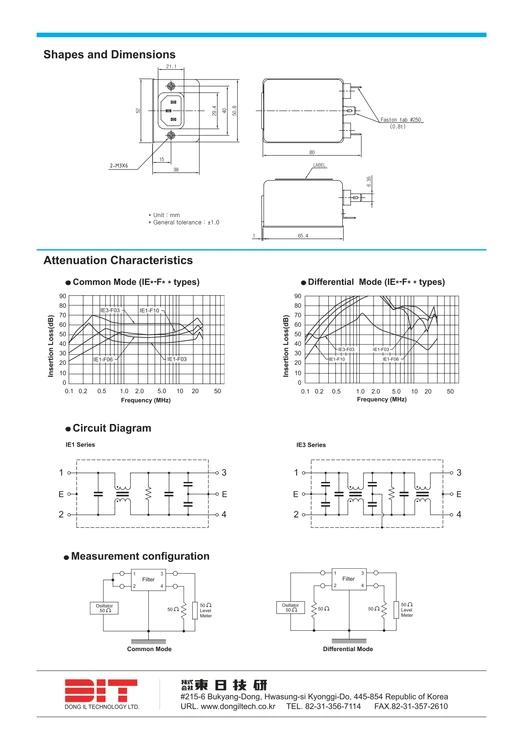

IE1 Series PDF File Download |
Series | Rated Voltage | Rated Current | Approvals | Cover | Mounting Method | Output Method |
IE1 Series | ~250V AC 50/60Hz | 3A,6A,10A | KC,UL,CSA | Metal | Screw | Faston Tab #250 |
※ 모든 첨부자료와 정보들은 (주)동일기연에서 출처된 내용입니다.
