IJ1 Series
페이지 정보
본문
|
Features - Ideally suited for products that must conform to part 15, FCC regulations - Metal cased miniature type with high performance - Meet over voltage category Ⅱ of IEC 60664 and comply with IEC 60950 - Uses IEC connector that meets the safety standards from certification bodies - Both soldering lug type and faston tab type are available Description Applications - Digital equipments - Personal computers and peripherals - For use in miniature equipments - For monitors and display units |

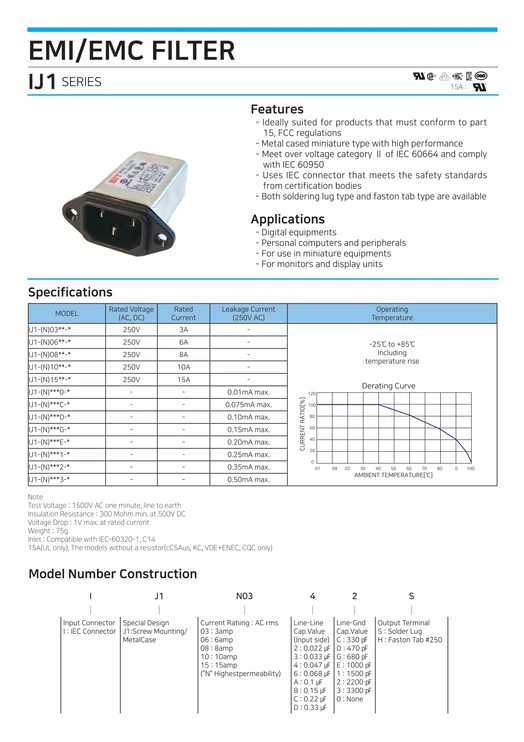

| IJ1 Series PDF File Download |  |
| Series | Rated Voltage | Rated Current | Approvals | Cover | Mounting Method | Output Method |
| IJ1 Series | ~250V AC 50/60Hz | 3A,6A,8A, 10A,15A | KC,UL,CQC,VDE+ENEC,CSA | Metal | Screw | Faston Tab #250 Soldering Lug |
 |
|
※ 모든 첨부자료와 정보들은 (주)동일기연에서 출처된 내용입니다.
