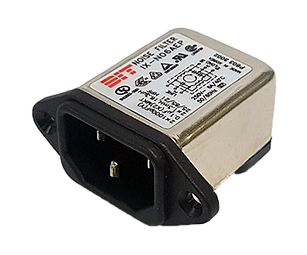

IX Series
페이지 정보
본문
Features - Ideally suited for products that must conform to part 15, FCC regulations - Metal cased miniature type with high performance - Meet over voltage category Ⅱ of IEC 60664 and comply with IEC 60950 - Uses IEC connector that meets the safety standards from certification bodies - Soldering Lug, Faston Tab, PCB mounting type are available - Short length and under tab for small space - Excellent filtering characteristics for high frequencies - Earth coil provided Description Applications - Digital equipments - Personal computers and peripherals - Measuring instruments - For use in miniature equipments - For monitors and display units |

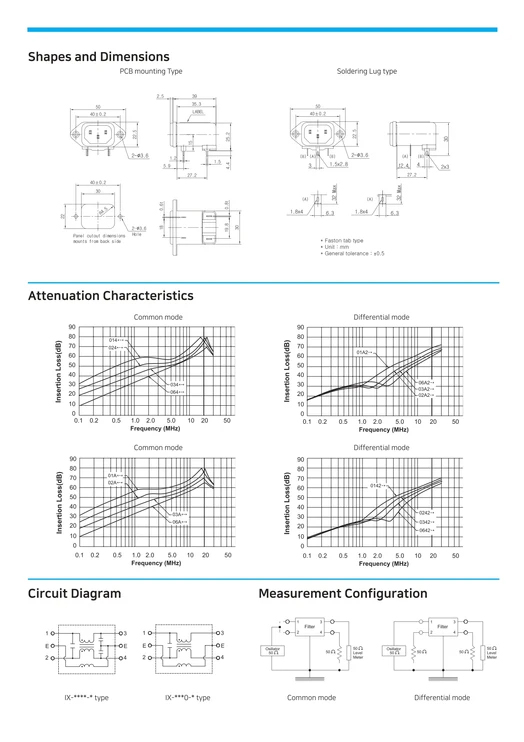

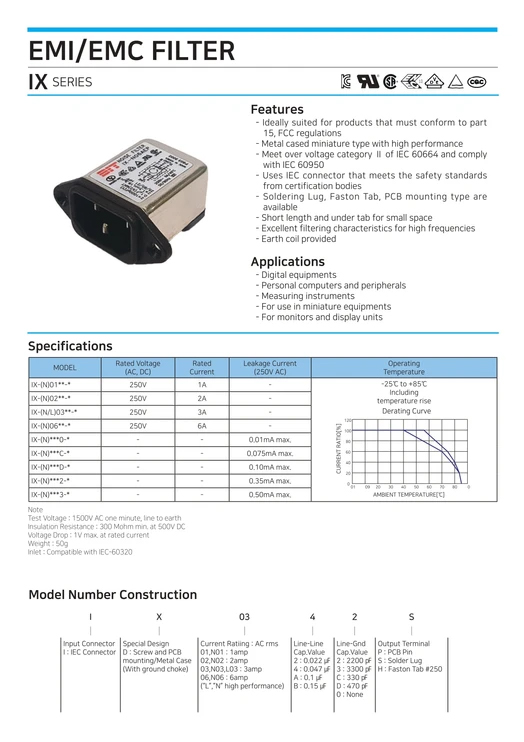

IX Series PDF File Download |
Series | Rated Voltage | Rated Current | Approvals | Cover | Mounting Method | Output Method |
IX Series | ~250V AC 50/60Hz | 1A,2A,3A,6A | KC,UL,CSA,VDE+ENEC,TUV,CQC | Metal | Screw,PCB | Faston Tab #250 CPB Pin,Soldering Lug |
※ 모든 첨부자료와 정보들은 (주)동일기연에서 출처된 내용입니다.
