IH Series
페이지 정보
본문
Features - Ideally suited for products that must conform to part 15, FCC regulations - Metal cased miniature type with high performance - Meet over voltage category Ⅱ of IEC 60664 and comply with IEC 60950 - Uses IEC connector that meets the safety standards from certification bodies - Snap in type for quick mounting - Both soldering lug type and faston tab type are available Description Applications - Digital equipments - Personal computers and peripherals - Measuring instruments - For use in miniature equipments - For monitors and display units |

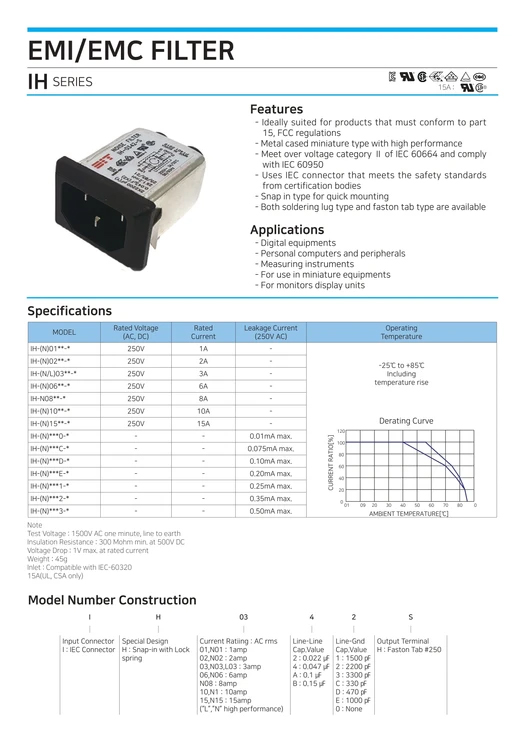

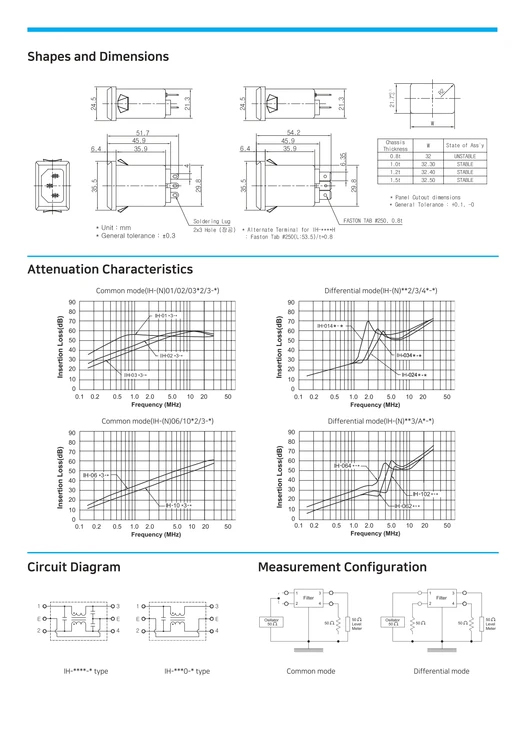

IH Series PDF File Download |
Series | Rated Voltage | Rated Current | Approvals | Cover | Mounting Method | Output Method |
IH Series | ~250V AC 50/60Hz | 1A,2A,3A,6A, 8A,10A,15A | KC,UL,CSA,VDE+ENEC,TUV,CQC | Metal | Snap-in with Lock Spring | aston Tab #250, Soldering Lug, PCB Pin |
※ 모든 첨부자료와 정보들은 (주)동일기연에서 출처된 내용입니다.
