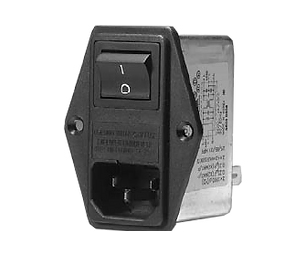

IP Series
페이지 정보
본문
Features - A fuse holder and a double pole power ON/OFF switch - Good shield effect by using metal case - Meet over voltage category Ⅱ of IEC 60664 and comply with IEC 60950 - Uses IEC connector that meets the safety standards from certification bodies - Snap in type for quick mounting Description Applications - Digital equipments - Measuring and testing instruments - Communication equipment |
IP Series PDF File Download |
Series | Rated Voltage | Rated Current | Approvals | Cover | Mounting Method | Output Method |
IP Series | ~250V AC 50/60Hz | 2A,4A,6A | KC,UL,CSA,TUV | Metal | Screw | Faston Tab #250 |
※ 모든 첨부자료와 정보들은 (주)동일기연에서 출처된 내용입니다.
