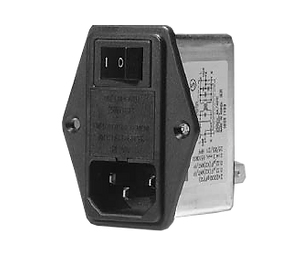

IR2 Series
페이지 정보
본문
Features - Inlet filter with fuse holder and comply with IEC 60127-6 - Good shield effect by using metal case - Meet over voltage category Ⅱ of IEC 60664 and comply with IEC 60950 - Uses IEC connector that meets the safety standards from certification bodies Description Applications - Personal computers and peripherals - Digital equipments - Measuring and testing instruments - Communication equipment - Medical equipments |
IR2 Series PDF File Download |
Series | Rated Voltage | Rated Current | Approvals | Cover | Mounting Method | Output Method |
IR2 Series | ~250V AC 50/60Hz | 2A,4A,6A | KC,cULus,VDE+ENEC | Metal | Screw | Faston Tab #250 |
※ 모든 첨부자료와 정보들은 (주)동일기연에서 출처된 내용입니다.
