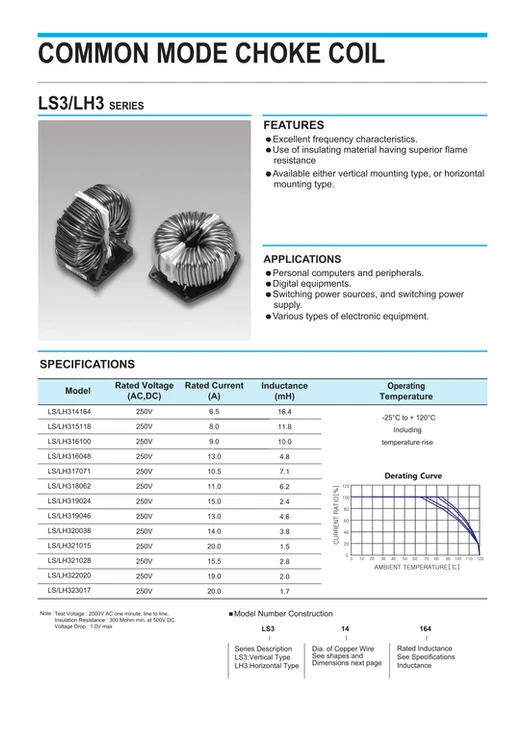

Common Mode LS3/LH3 Series

페이지 정보

본문










Features


- Excellent frequency characteristics

- Use of insulating material having superior flame resistance

- Available either vertical mounting type, or horizontal mounting type


Description


Applications

- Personal computers and peripherals

- Digital equipments

- Switching power sources, and switching power supply

- Various types of electronic equipment

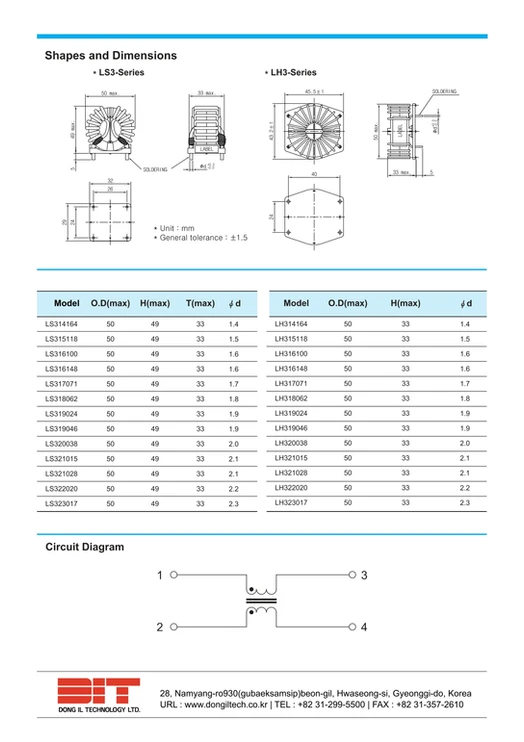

LS3/LH3 Series PDF File Download   315e35eb04d28545048367a5a7d3ef9b_1683709423_5709.png



Series
Rated Current
Inductance
Temperature
Cover
Mounting Method
LS3/LH3 Series
1A~20A
~16mH

-25℃~+120℃

Plastic
PCB

※ 모든 첨부자료와 정보들은 (주)동일기연에서 출처된 내용입니다.
